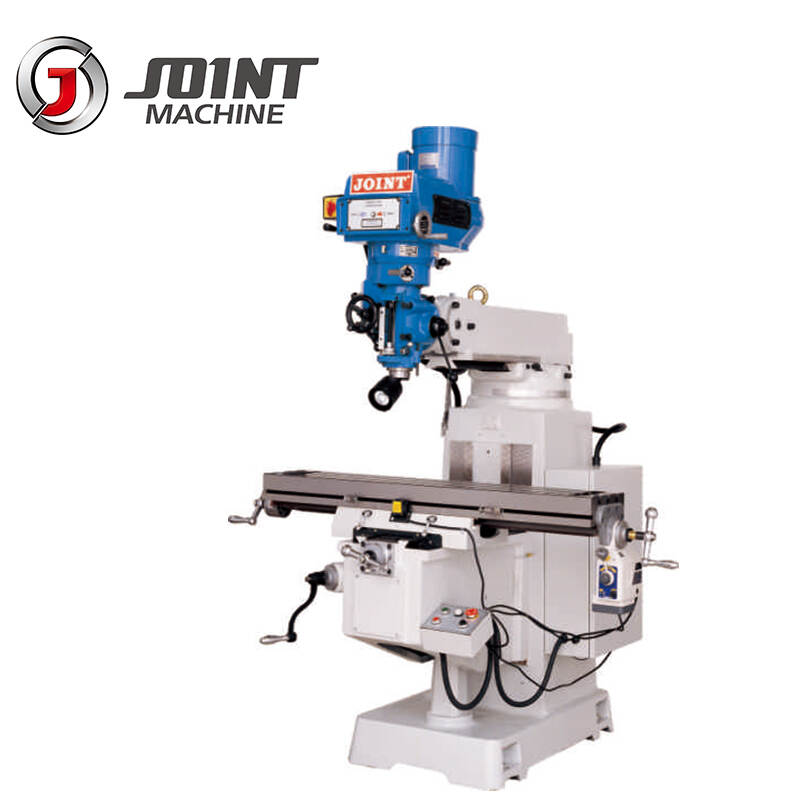

3VA High Efficiency Turret Milling Machines
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
High-quality castings, precision processing to ensure excellent precision and stability
1. Spindle tolerance: 0.002mm.
2. Twice precision scraping can ensure processing quality .
3. Suitable for electronic parts, holes, slots, frames and mold processing.
4. Taiwan original milling head, Japan NSK P4 precision spindle bearing.
Product main technical specifications:
| Specifications |
Units | Model | |
| 3VA | |||
| Table size | mm | 1270x254x90 | |
| Travel | Longitude(X) | mm | ▲880 |
| Crossward(Y ) | mm | ▲395 | |
| Vertical(Z) | mm | ▲340 | |
| Travel of spindle quill | mm | 127 | |
| Max. distance from the spindle nose to table | mm | 400 | |
| Spindle | Rotation speed (Step speed milling head) |
50/60HZ rpm | 60-4530(16 grade)/80-5440 (16 grade) |
| Rotation s peed (Variable speed milling head) |
50/60HZ rpm | 50-3500/60-4200 | |
| Rotation speed (Inv erter speed milling head) |
50HZ rpm | 0-4200 | |
| Taper | R8(NT30) | ||
| Rated power | HP | 3HP | |
| Tilt angle | Forward and Backward | +-45° | |
| Left and Right | +-90° | ||
| Dimension | mm | 1500x1700x2150 | |
| Net weight | kg | 1280 | |
