5 Axis CNC Milling and Turning Machine FH270P-C Gantry Type CNC Machining Center for Oil Drill Bit

Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
  • Model
    FH270P-C
  • X axis travel
    2700mm
  • Y axis travel
    2700mm
  • Z axis travel
    1600mm
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

 Joint Machinery - Gantry Type 5-Axis Linkage Milling and Turning Machine Center

Technical Highlights

  1. Gantry type moving beam high rigidity structure
  2. Fully optimized cooling system
  3. High rigidity ensures high precision
  4. Higher efficiency ensures perfect output
  5. Portable and user-friendly operation
  6. Panoramic structure is easy to maintain
  7. Innovative tool management system
  8. Highly cost-effective among the same specifications
  9. B/C-axis high-precision absolute value rotary encoder measurement system and B/C-axis DD direct drive structure parts transmission is more accurate
  10. XYZ three axis screw hollow cooling system and XYZ three linear axes equipped with high-precision linear grating scale
  11. Z-axis double-side motor drive and Z-axis double-sided hydraulic balance mechanism realizes high dynamic response of Z-axis

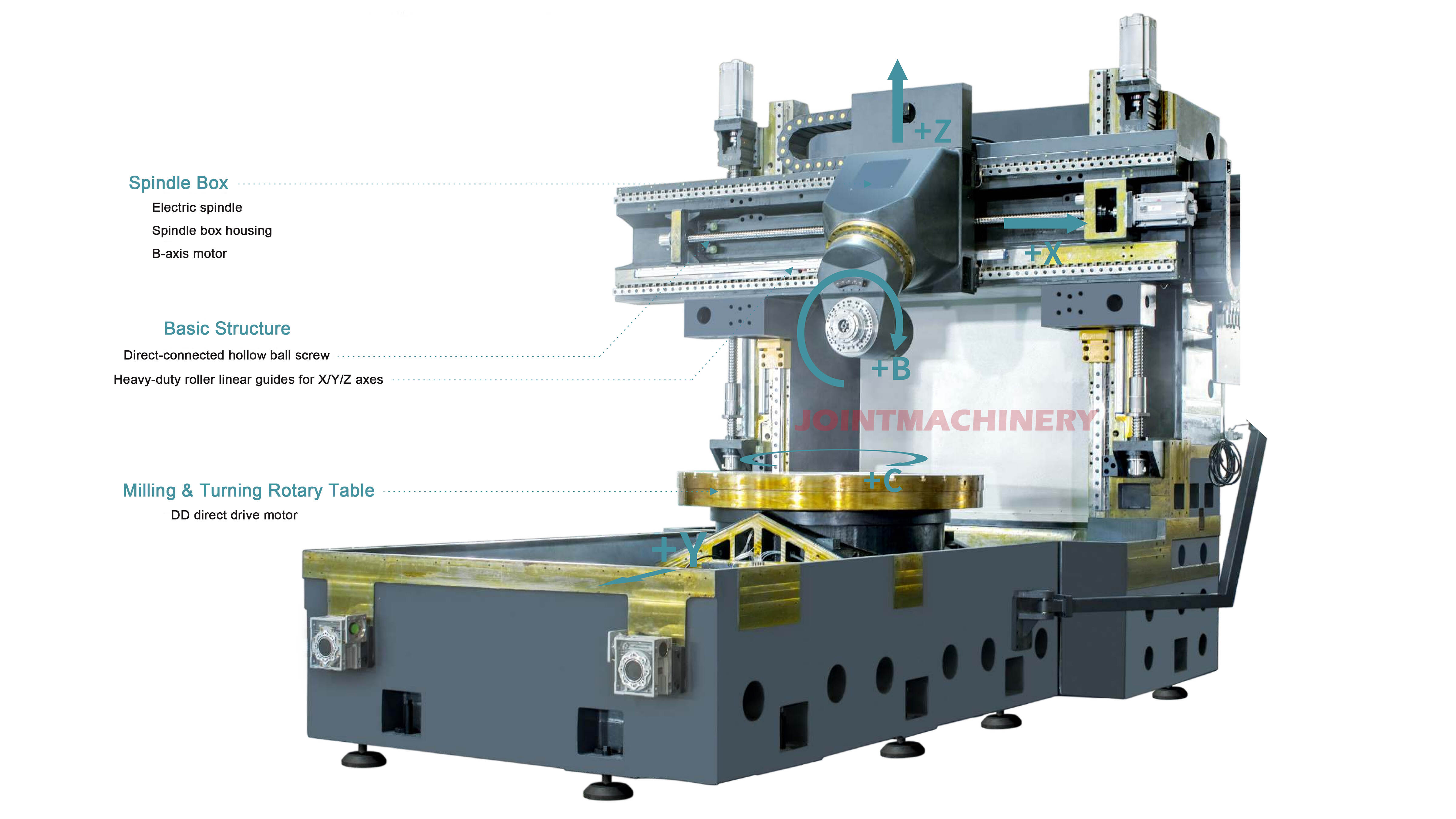

Highest rigidity ensures maximum processing performance

  • Optimized component structure
  • C3-grade hollow-cooled ball screw drive on all axes
  • 65mm-wide heavy-duty roller guides on the X, Y, and Z axes
  • Larger YRT bearings on the B and C axes
  • Gantry-type moving beam structure
  • Dual-sided hydraulic balancing mechanism



Precision Machining

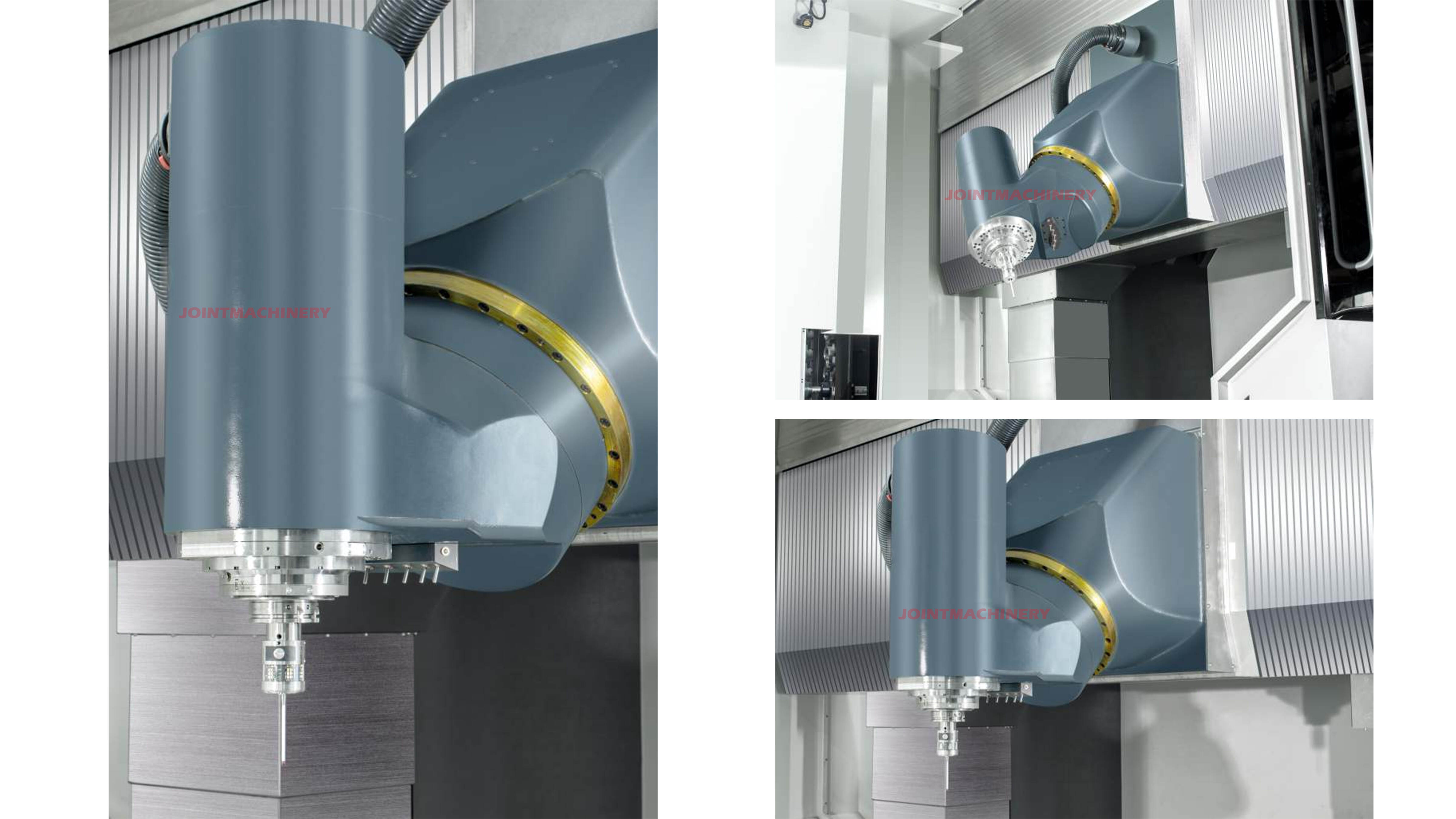

Powerful 5-axis universal milling head significantly improves and enhances interference contours and rigidity

The B-axis, with a direct drive DD motor, has increased rigidity through larger YRT bearings, enabling high-torque cutting in linkage mode. It is equipped with a Heidenhain circular grating and fully closed-loop control for precise feed.



Product Main Technical Specifications

5 Axis CNC Milling and Turning Machine FH270P-C Gantry Type CNC Machining Center for Oil Drill Bit

Model FH270P-C
X/Y/Z axis travel 2700mm x 2700mm x 1600mm
Distance from vertical spindle nose to table 236mm-1836mm
Distance from horizontal milling head center to table 130mm-1730mm
Working table size Φ2200mm
Rotary table speed 150rpm
Max table load Milling 8000kg
Turning 5000kg
Swing milling head (B axis) Standard
Swing range (0=Vertical/180=Level) -30° to +180°
B axis rated speed 50rpm
CNC orthogonal milling head (A axis) Optional
Orthogonal milling head swing range (0=horizontal) ±120°
A axis rated speed 30rpm
Electric spindle parameters
  Standard (with turning) Optional (without turning) Optional (with turning)
Max speed of electric spindle 12000rpm 1000rpm 7000rpm
Power (S1-100%/40%DC) 48/71kw 50/70kw 52/73kw
Torque (S1-100%/40%DC) 300/452Nm 400/560Nm 500/700Nm
Tool interface HSK-A100 HSK-A100 HSK-A100
Tool magazine capacity 40T (standard)
36T (optional)
Max tool diameter/length/weight Φ350mm/300mm/12kg
Tool changing time (tool to tool) 4s
Linear grating scale Fagor (standard)
HEIDENHAIN (optional)
Circular grating scale HEIDENHAIN
Infrared probe Rensishaw OMP60
Tool setting gauge (tool measuring in machining area) Rensishaw NC4F230
Spiral chip removal Standard
Paper tape filter Standard
CTS 40bar
Ring water spray 16bar
Bed material Cast iron (QT600-3)
Rapid traverse 40m/min
X/Y/Z positioning accuracy 0.006mm
X/Y/Z repeat positioning accuracy 0.004mm
B/C positioning accuracy 8''
B/C repeat positioning accuracy 4''
Control system Siemens ONE (standard)
HEIDENHAIN (optional)
Machine height (standard machine) 5150mm
Tool magazine occupied area (L x W) 1915mm x 1400mm
Chip conveyor occupied area (L x W) 3700mm x 955mm
Water tank occupied area (L x W) 1785mm x 1355mm
Complete machine occupied area (excluding water tank) (L x W) 8800mm x 6800mm
Machine handrail pedal Standard
Machine weight 72000kg



Application Industry:

One machine can process various types of high-precision workpieces

This series of machine tools can realize multiple functions: vertical and horizontal conversion, milling and turning, one-time clamping, multi-process and multi-angle processing and forming.

  1. Impeller processing
  2. 45° bevel processing
  3. Milling and turning combined machining in one clamping
  4. Helical rotor processing
  5. Vertical turning function
