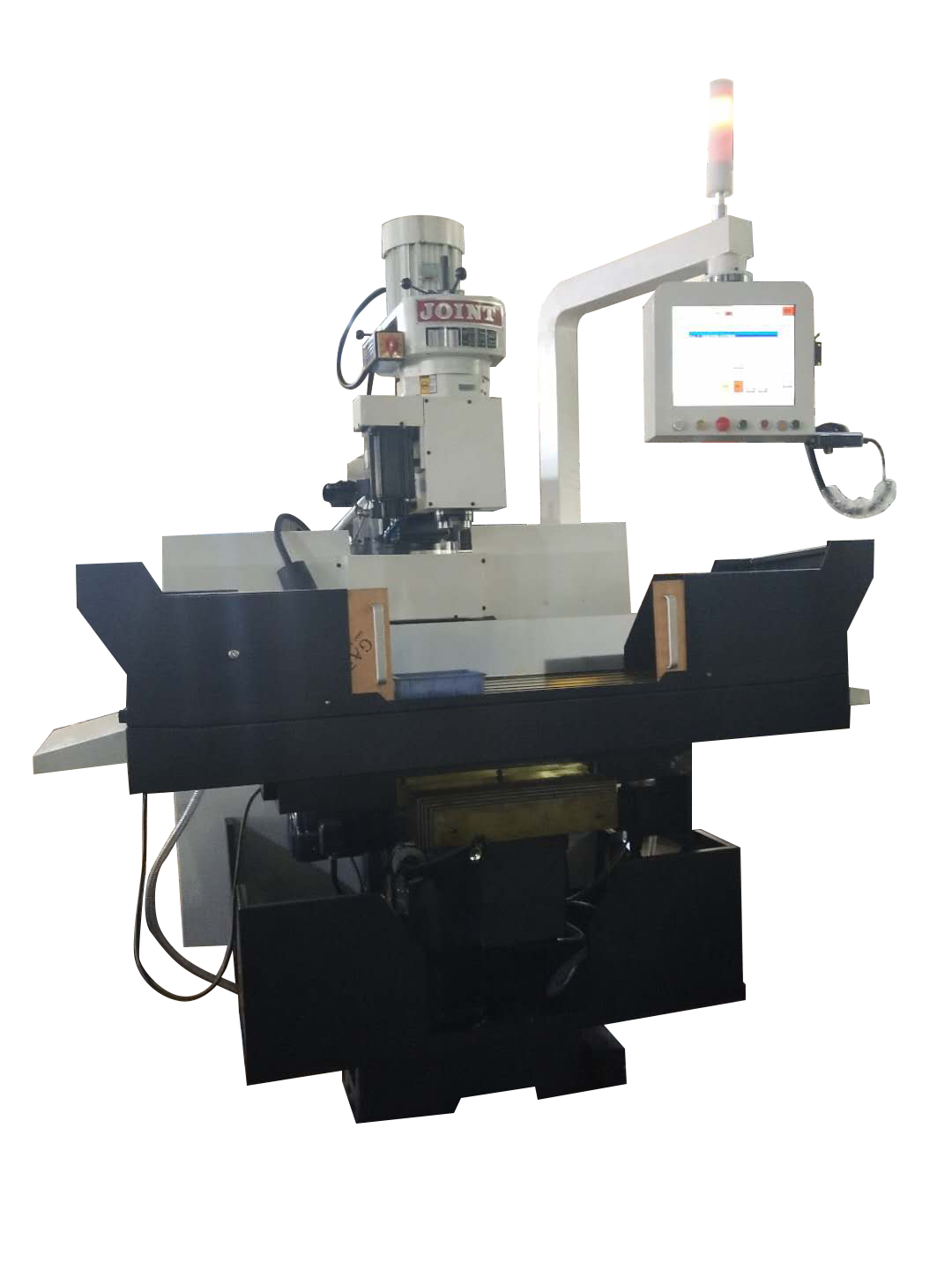

5KJ-B High Efficiency Turret Milling Machines
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen port or any seaport in China
Payment:
L/C,Western Union,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
JOINT- NC Intelligent milling machine - universal milling machine replacer
1. Configure the split electronic handwheel for easy manual operation.
2. Based on the Windows platform to develop the JOINT intelligent machine system, the application is more user-friendly.
3. The milling head is modified and driven by the servo motor to realize the Z- axis automatic control precision processing.
4. X/Y/Z axes are adopted the ball screw, which can compensate the pitch to ensure accurate positioning.
5. X/Y/Z axes are driven by servo motor to realize three- axis automatic control, which greatly improves the machine feed speed and
machining accuracy.
Product main technical specifications:
| Specifications |
Units | Model | |
| 5KJ-B | |||
| Table size | mm | 1473x320x90 | |
| T slot (W*N*D) | mm | 16*3*75 | |
| X aixs Travel | mm | 950 | |
| Y aixs Travel | mm | 420 | |
| Z aixs Travel | mm | 430 | |
| Knee travel | mm | 380 | |
| Max. distance from the spindle nose to table | mm | 0-500 | |
| Spindle rated power | HP | 7.5HP | |
| Spindle taper | BT40 | ||
| Rotation speed | rpm | 8000 | |
| Rapid feed(XY/Z) | m/min | 20/20/20 | |
| Cutting feed | m/min | 8 | |
| Dimension | mm | 1900x1900x2800 | |
| Net weight | kg | 1600 | |
