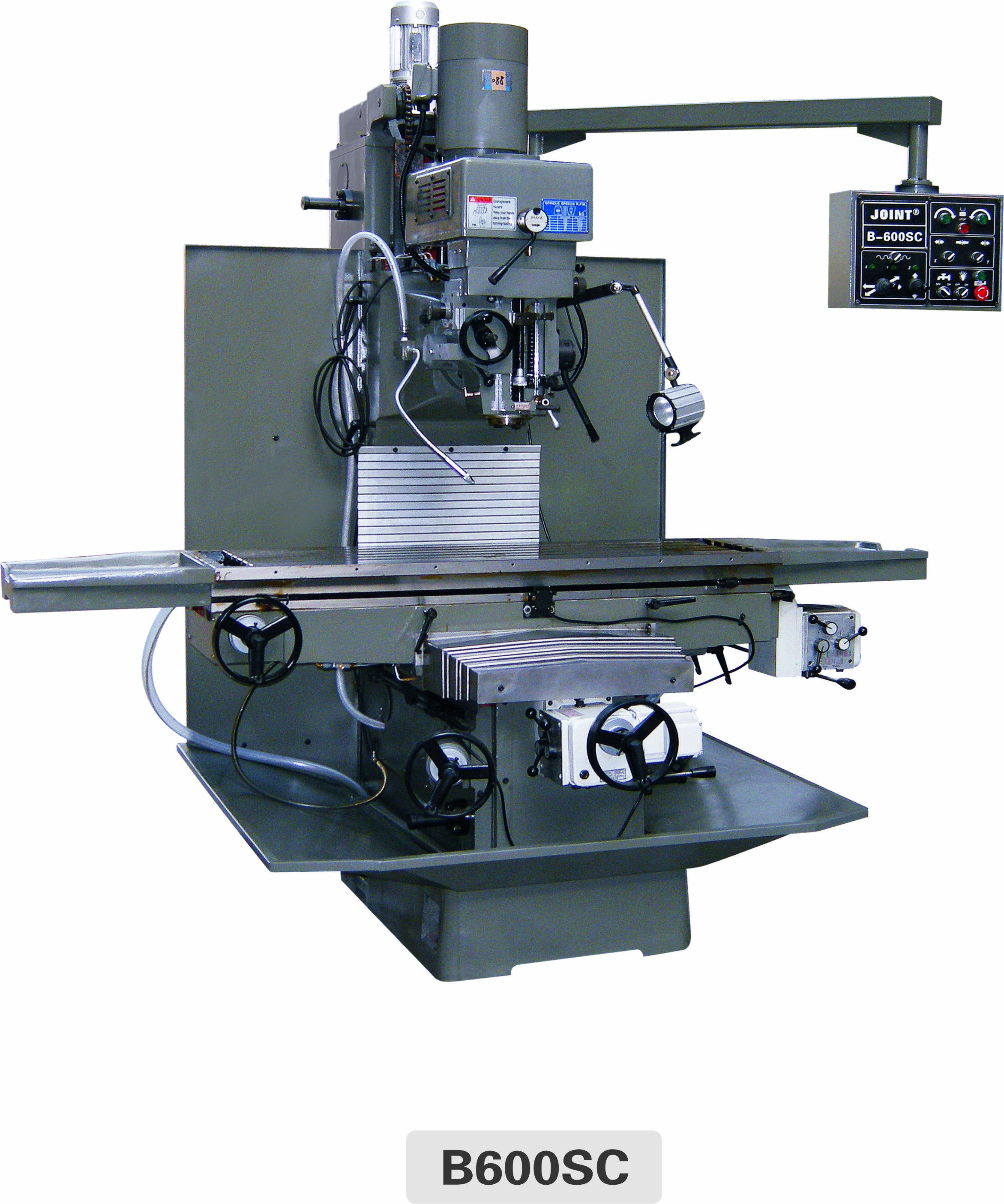

B600SC High Efficiency Turret Milling Machines
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen port or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
High precision component milling and boring machine
1. Bed milling machine, high rigidity and large bearing capacity.
2. Taiwan original precision milling head, ball screw, NSK P4 precision spindle bearing, spindle tolerance 0.002mm.
3. Three axes adopt precision ball screw, with run fast and high accuracy in positioning.
4. Suitable for heavy and large workpiece(800-1000KG) processing.
5. Bed structure, Meehanite cast iron and high rigid structure design.
Product main technical specifications:
| Specifications |
Units | Model | |
| B600SC | |||
| Table size | mm | 1370x405 | |
| Travel | Longitude(X) | mm | ▲1000 |
| Crossward(Y ) | mm | ▲350 | |
| Vertical(Z) | mm | ▲520 | |
| Travel of spindle quill | mm | 140 | |
| Max. distance from the spindle nose to table | mm | 640 | |
| Spindle | Rotation speed (Step speed milling head) |
50/60HZ rpm | 58-3000/70-3600 |
| Rotation s peed (Variable speed milling head) |
50/60HZ rpm | 58-3250/70-3900 | |
| Rotation speed (Inv erter speed milling head) |
50HZ rpm | 0-4200 | |
| Taper | NT40 | ||
| Rated power | HP | 7.5HP | |
| Tilt angle | Forward and Backward | 0° | |
| Left and Right | +-90° | ||
| Dimension | mm | 2000x2230x2150 | |
| Net weight | kg | 2900 | |
