CMD-2016-35.20 Mold Processing 6 Axis CNC Deep Hole Drilling Machine with Milling Function
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or anysea port in China
Payment:
Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
- Drilling diameter of gun drill3-50mm
- Max.drilling depth of drill1600mm
- X-Axis Travel2000mm
- Y-Axis Travel1650mm
- Z-Axis Travel1000mm

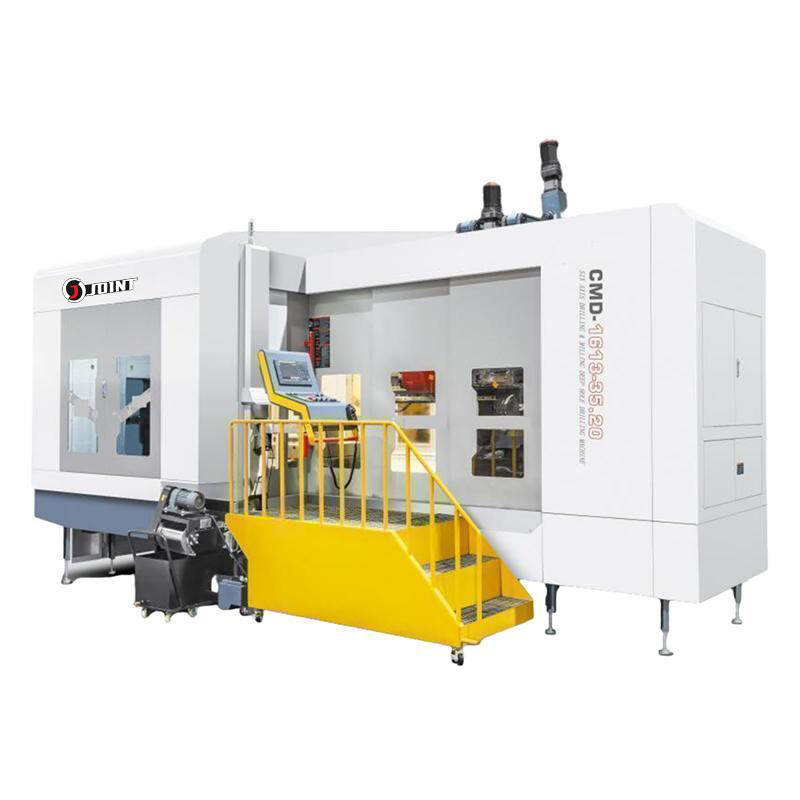

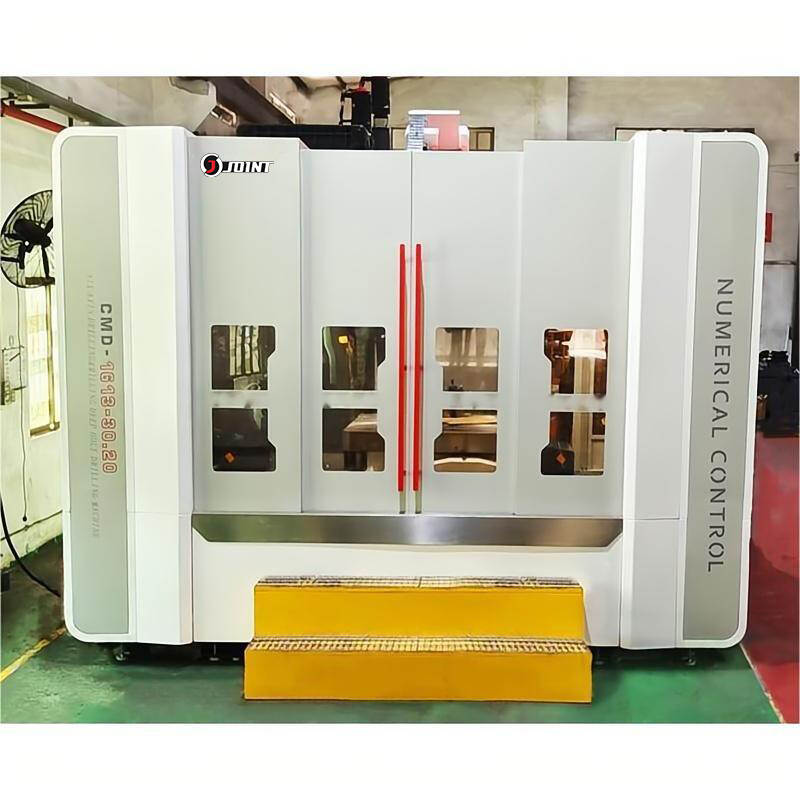

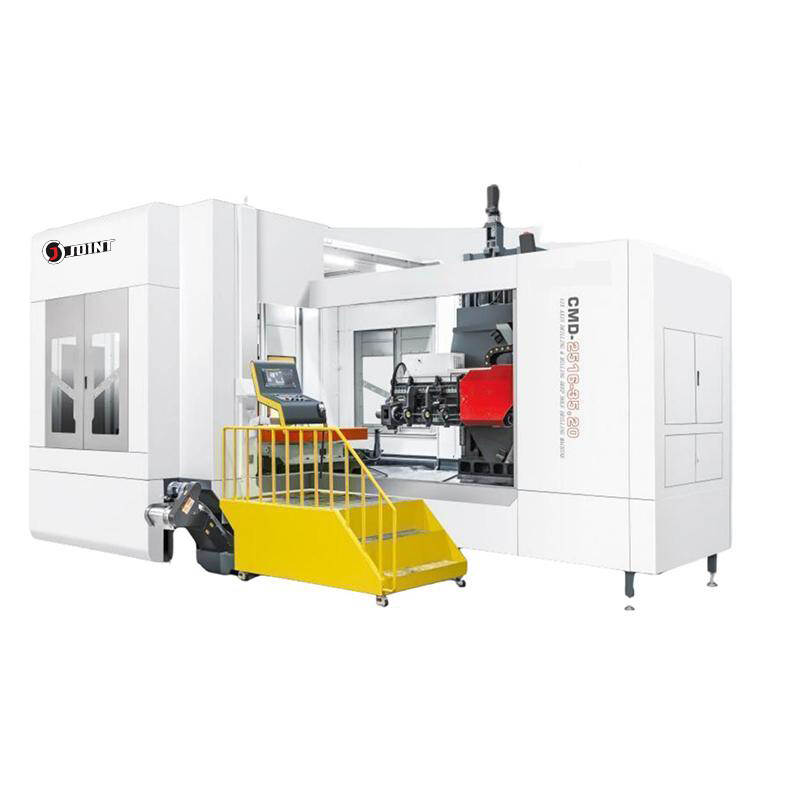

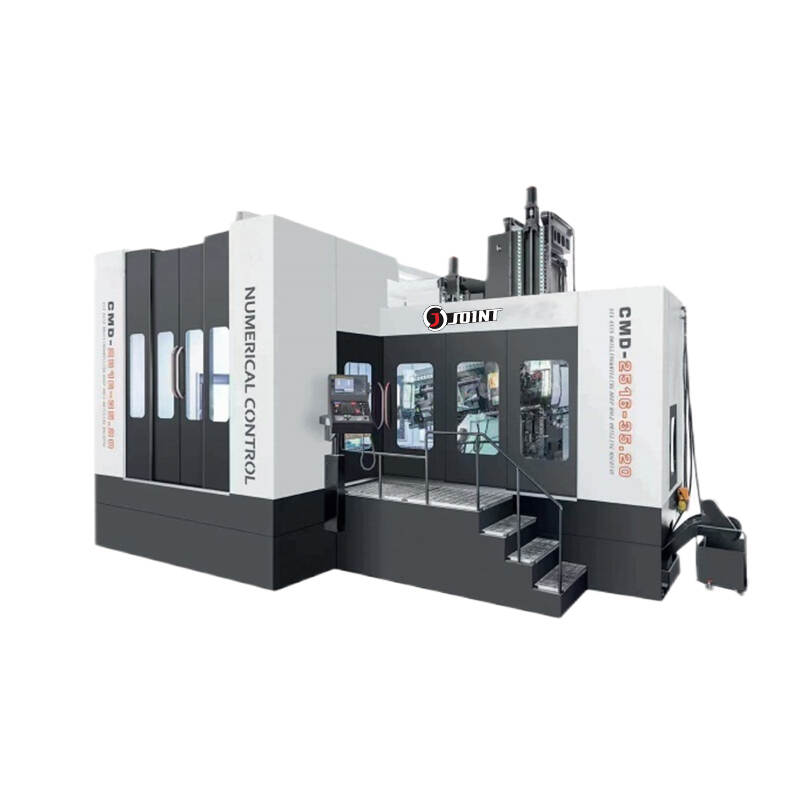

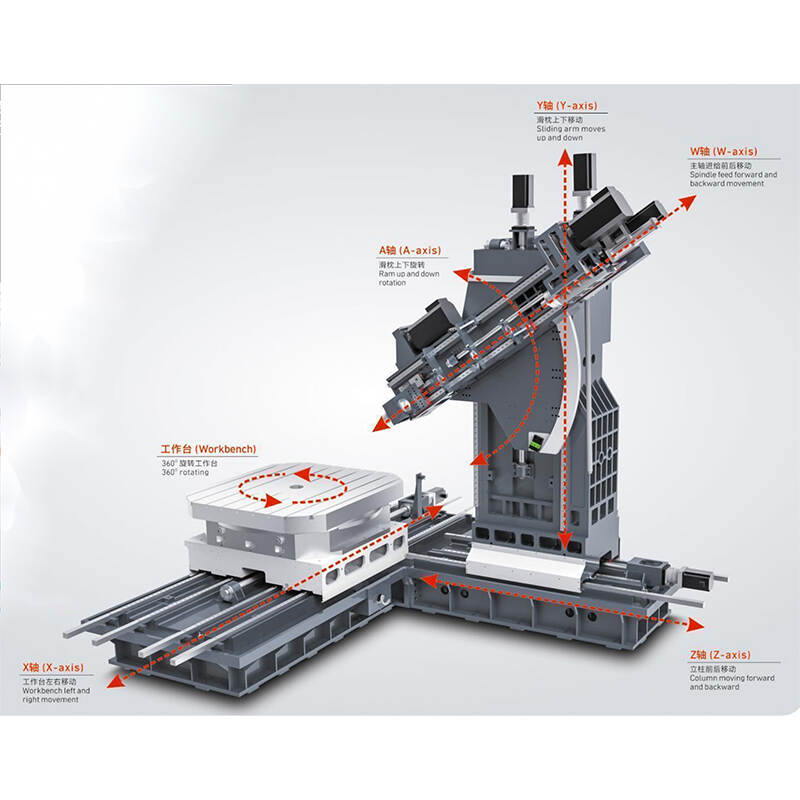

- Swing axis rotation angle (A)The spindle Turn upward 20°, and down to 35°
- CNC rotary workbench (B)360°
Shipping fee
Shipping fee
CMD-2016-35.20 Mold Processing 6 Axis CNC Deep Hole Drilling Machine with Milling Function
Diling is the most basic process in machining operation, is also the process with the most wide range in application field, however,so far there has been no such an ideal equipment to change the situation that this traditional manual processing is time-consuming and energ)y-consuming.Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll .rocessing,. and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing lts emergence is the pride of mechanical manufacturing industry moreover it isthe second revolution in the field of mechanical processing!
The precision CNC deep hole driling machine produced by the company is suitable for various kinds of work pieces for deep hole processing:. die &. mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry(mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine.
Standard-Configurantion Accessories
1. High pressure oil cylinder
2. Taiwan control system
3. lmport servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision
Optional Accessories
Product main technical specifications:
| Model | Unit | CMD-2016-35.20 |
| Drilling diameter of gun drill | mm | 3-50 |
| Drilling diameter of single pipe drill | mm | 18-65 |
| Max drilling depth of gun drill (W) | mm | 1600 |
| Left and right stroke of workbench (X) | mm | 2000 |
| Sliding table stroke (Y) | mm | 1650 |
| Column stroke (Z) | mm | 1000 |
| Max.drilling depth of gun drill (W) | mm | 1600 |
| Swing axis rotation angle (A) | ° | The spindle Turns upward 20°, and down to 35° |
| CNC rotary workbench (B) | ° | 360° |
| Max.loading capacity | kg | 18000 |
| CNC indexing table size (L*W) | mm | 1800*1600 |
| Spindle taper hole | - | BT50 |
| Max.spindle speed | rpm/min | 4500 |
| Spindle motor | kw | 15/18.5 |
| X-axis feed servo motor | N.m | 36 |
| Y-axis feed servo motor | N.m | 36 |
| Z-axis feed servo motor | N.m | 36 |
| W-axis feed servo motor | N.m | 36 |
| A-axis feed servo motor | N.m | 36 |
| B-axis feed servo motor | N.m | 36 |
| Tatol power | kw | 65 |
| Coolant pressure range | Mpa | 2-15 |
| Coolant flow range | L/min | 6-85 |
| Machine size (L*W*H) | mm | 9350*5500*5600 |
| Machine weight (about) | kg | 25000 |
| Control system | - | FANUC (Opt:SYNTEC) |
| Milling range | mm | 1600+1000 |
