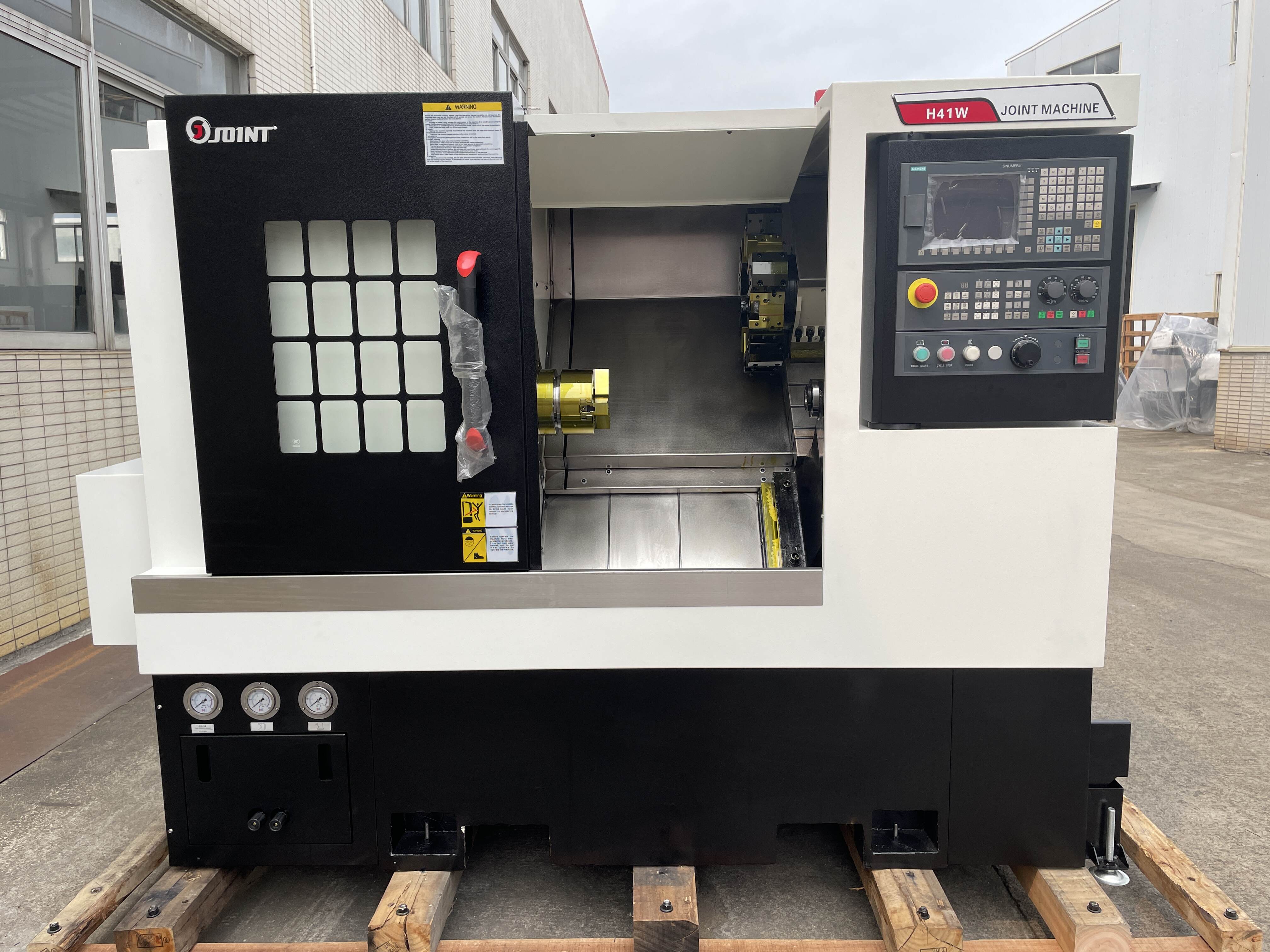

China CNC Machining H41W Slant Bed CNC Lathe Machine Turning Lathe for Metal
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen port or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
Product features:
1. Horizontal guideway structure, resin sand casting, high rigidity; Guide rail quenching and fine grinding, high precision, durability.
2. Integral gear box type large aperture spindle single, three support, high rigidity structure, suitable for heavy cutting.
3. Spindle inverter or servo type, can achieve constant linear speed turning.
4.High speed spindle, precision structure design, integral gear box type large aperture spindle unit can be selected, three supports, high rigid structure, suitable for heavy cutting
5. The spnidlebox gear set and spindle of 6150 and above models are subject to fine grinding, with low noise
Applicant industry
1. Auto part ;
2. Machine facility;
3. Medical device part;
4. Auto equipment.
Create value by high speed and high efficiency
Product main technical specifications:
| Specifications | Units | Model |
| H41W | ||
| Max. swing diameter over bed | mm | Φ410 |
| Max turning diameter over carriage | mm | Φ250 |
| Maximum processing length | mm | 400 |
| Spindle speed range | rpm | 4000 |
| Spindle motor power | kw | 7.5 |
| Spindle through hole diameter | mm | Φ56 |
| X axis stroke | mm | 210 |
| Z axis stroke | mm | 420 |
| Tool party size | mm | 25 |
| X/Z rapid feed speed | m/min | 30/30 |
| X/Z reapt position accuracy | mm | 0.003/0.003 |
| Dimension L*W*H | mm | 2300*1500*1700 |
| Weight | kg | 2900 |
