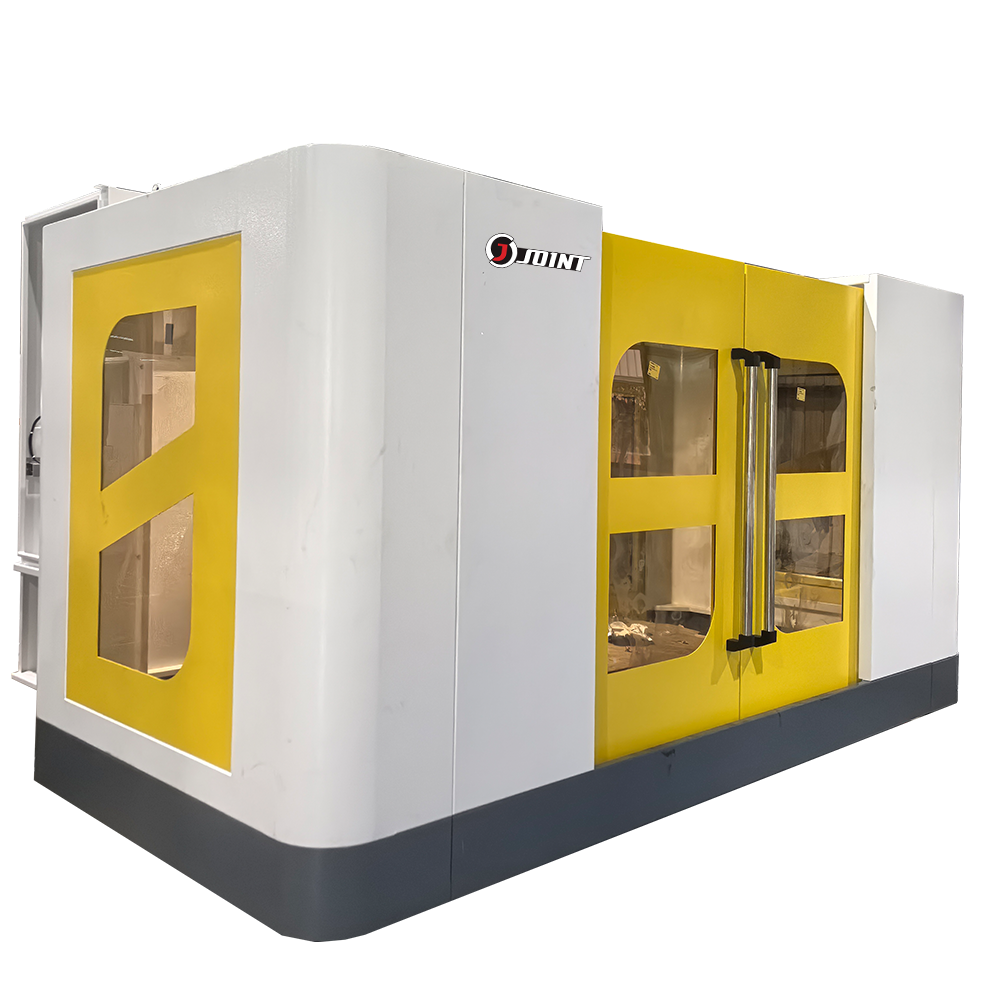

DH-2216 Metal Pipe Drilling Machine Tools 3 Axis CNC Deep Hole Drilling Machine
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or anysea port in China
Payment:
Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
- Inner Diameter of Drilling2.5-35mm
- Maximum Depth of Drilling1600mm
- Size of Working Table2200*1350
- X-Axis Travel2000mm
- Y-Axis Travel1300mm
- Z-Axis Travel1600mm
Shipping fee
Shipping fee
DH-2216 Metal Pipe Drilling Machine Tools 3 Axis CNC Deep Hole Drilling Machine
Diling is the most basic process in machining operation, is also the process with the most wide range in application field, however,so far there has been no such an ideal equipment to change the situation that this traditional manual processing is time-consuming and energ)y-consuming.Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll .rocessing,. and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing lts emergence is the pride of mechanical manufacturing industry moreover it isthe second revolution in the field of mechanical processing!
The precision CNC deep hole driling machine produced by the company is suitable for various kinds of work pieces for deep hole processing:. die &. mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry(mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine.
Standard-Configurantion Accessories
1. High pressure oil cylinder
2. Taiwan control system
3. lmport servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision
Optional Accessories
Product main technical specifications:
| Model | Unit | DH-2216 |
| Inner diameter of drilling | mm | 2.5-35 |
| Maximum depth of drilling | mm | 1600 |
| Size of working table | mm | 2200*1350 |
| X-axis travel | mm | 2000 |
| Y-axis travel | mm | 1300 |
| Z-axis travel | mm | 1600 |
| cutting feed | mm/min | 1-300 |
| Max rotary speed of spindle | rpm | 7000 |
| Spindle motor | kw | 11/15 |
| Three axis motor | kw | 4.4/4.4/2.3 |
| Pressure of oil pump | kg/cm | 0-150 |
| Capacity of cutting tank | litre | 800 |
| Max load weight of table | kg | 16000 |
| Weight | kg | 16000 |
| Demension | mm | 6000*5200*3000 |
