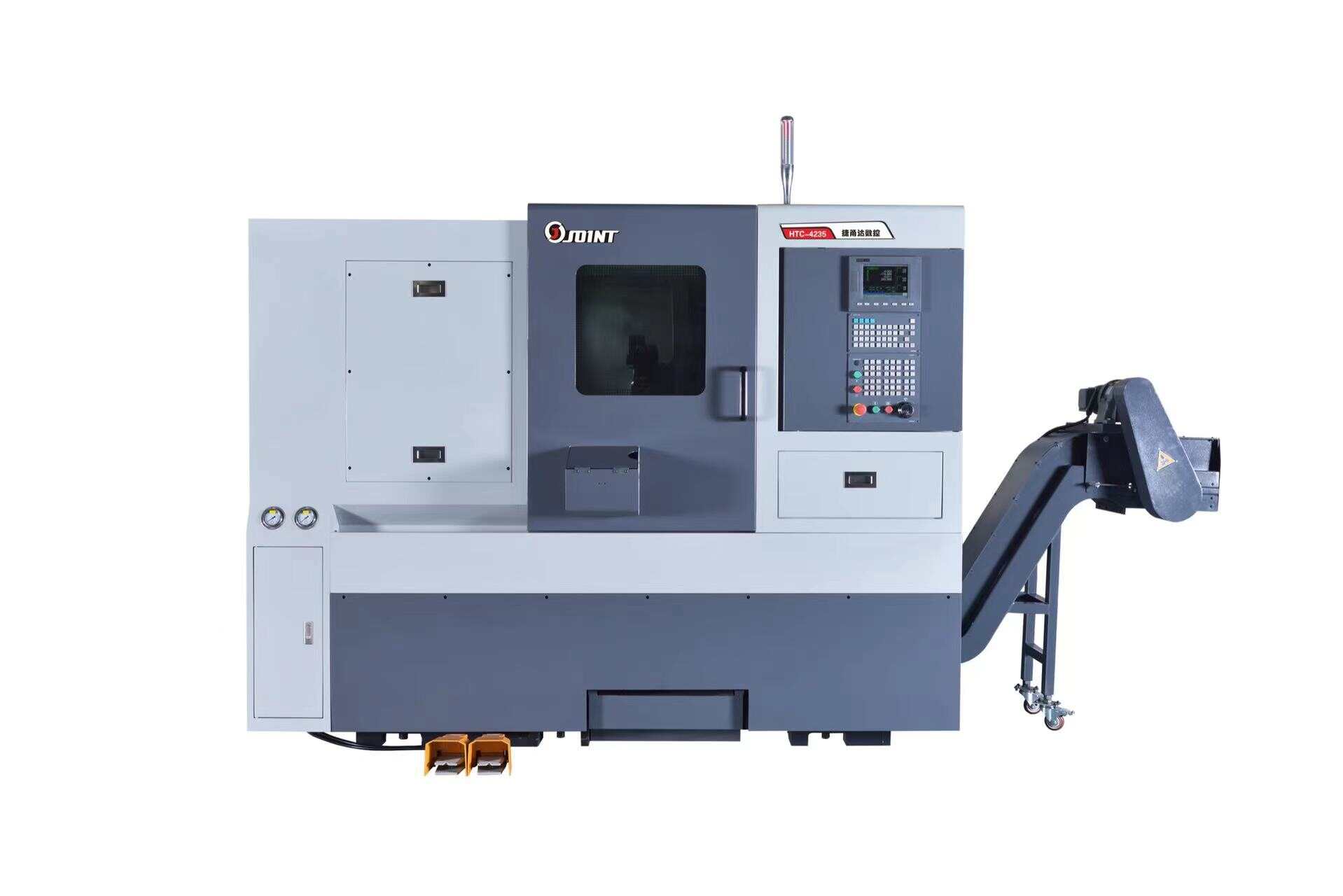

HTC-4235 High-Accuracy Automatic Slant Bed CNC Lathe Machine For Medium-sized Parts
Product features
1. Slant bed premium casting, high stable structure design, suitable for high feed processing.
2. X, Z axes adopts linear guide，two axes rapid moving speed can reach 20m/min.
3. High speed spindle insures precise high speed cutting performance.
4. Coupling, bearing, ball screw, linear guideway these key parts adopt Germany, Japan, Taiwan's top brand, insuring machine's high stability and quality.
5. Adopting auto lubrication system, decrease the fray of slide parts, and improve accuracy stability.
6. Using gang-type tool, suitable for batch parts precisely processing.
High precision and high quality create high value
This series high speed CNC lathe machine adopts imported or domestic high performance control system with its matching motor and drive, achieving two axes linkage processing. It is equipped with precise axis sleeve spindle with high accuracy, high rotation speed, stable operation features, and it is optional with hydraulic chuck and spring collet, efficiently saving clamping time. When it adopts hydraulic tool turret, its tool change speed will be faster and operation will be smoother. This series lathe is suitable for processing axis part, thread, arc, circular cone and inner, outer surface of rotary body which is widely used in automobile industry, electronic industry, motorcycle, household appliances, furniture, lighting and other industries in the processing of rotary body products.
Product main technical specifications:
| Specifications | Units | Model |
| HTC-4235A/B | ||
| Max. swing diameter over bed | mm | Φ420 |
| Max turning diameter over carriage | mm | Φ120 |
| Max length of workpiece | mm | 300/350 |
| Spindle head (Chuck optional) | A2-5(6")/A2-6(8") | |
| Spindle motor | kw | 5.5/7.5 |
| Spindle rotation speed | rpm | 4500 |
| Spindle through-hole diameter | mm | Φ56/Φ66 |
| Bar diameter | mm | Φ45/Φ52 |
| X axis limited travel | mm | 450 |
| Z axis limited travel | mm | 350/400 |
| Tool post | gang tool /four-position turret (optional eight-position electric turret/12- position servo turret) |
|
| Height of tool turret center | mm | 63 |
| X axis rapidmovementn/min | 20 | |
| Z axis rapidmovementn/min | 20 | |
| Bed type and slant angle | Whole body Slant type 45° | |
| Dimension L*W*H | mm | 2200x1790x2000/2200x1900x2000 |
| Net Weight | kg | 2400 |
