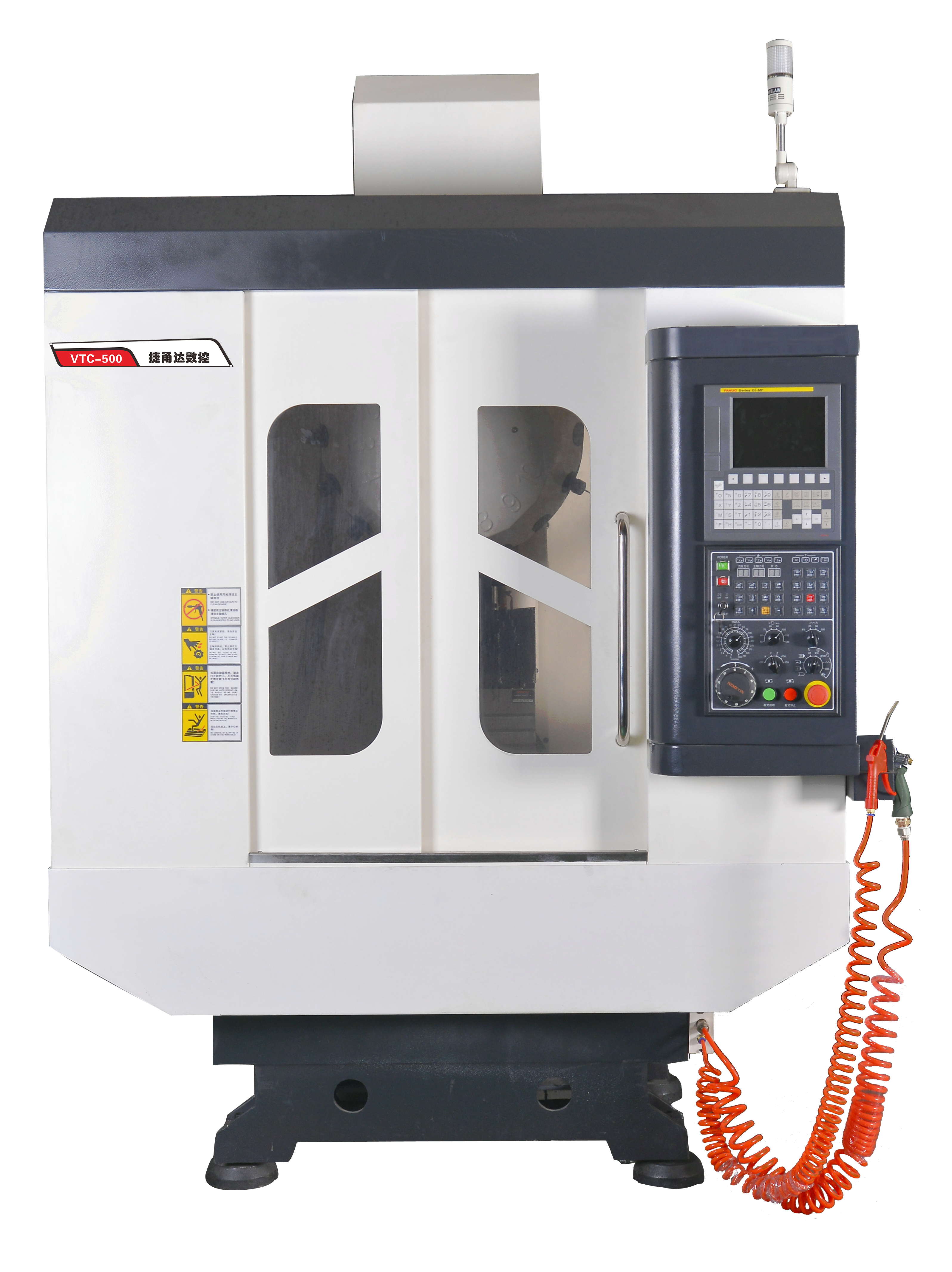

High Precision Drilling and Tapping CNC Drilling Machine for Small Parts Processing
Quality reliability and processing performance are more prominent
This series of products are manufactured according to imported machine quality standards, with high stability, high speed and high efficiency drilling processing. It is widely used in 3C industry, electronic shell processing, aerospace, automotive small parts, medical equipment and other industries to process parts, shells, etc.
Deep drilling and drilling center
Spindle adopts the central water discharge spindle, equipped with hollow servo spindle motor and hydraulic cooling system, which can realize drilling of 60-100mm depth.
Features
1. X, Y, Z axes are linear guide way. 3 axes standard rapid feed speed is 48m/min (optional up to 60m/min).
2. High-rigidity machine body structure design. In addition to the drilling and attack characteristics, low-intensity milling of aluminum parts can also be performed.
3. Couplings, bearings, spindles, balls, lead screws, linear guides, tool magazines, unclamping cylinders and other key
components are made of high-grade precision parts from Germany, Japan and Taiwan.
4. The machine configuration is modular, and can meet the different processing needs of customers. Our personalized choice: 10000~20000 rpm spindle, 16 or 21 tool magazines.
5. This processing center is mainly designed for the processing of porous precision small parts. High-speed operation, rapid tool change, and fast precision are the advantages of this machine.
6. Our company accumulates and continuously optimizescustomer application data, and can provide application technical support for customers with high-efficiency processing performance.
Specification
Standard accessories
1. Mitsubishi/ Fanuc controller system
2. Fully enclosed cover
3. 16/21 ATC
4. Pneumatic system
5. Auto lubrication system
6. Work piece coolant system
7. Air gun+Water gun
8. Operation unit
9. RS232 Interface
10. Alarming light
11. Working light
12. Guide way cover
13. Tools and toolbox
14. Technical documents
15. Spindle oil coolant
16. Heat exchange
Optional accessories
1. Rotary table
2. Auto conveyor
This series of products are manufactured according to imported machine quality standards, with high stability, high speed and high efficiency drilling processing. It is widely used in 3C industry, electronic shell processing, aerospace, automotive small parts, medical equipment and other industries to process parts, shells, etc.
Deep drilling and drilling center
Spindle adopts the central water discharge spindle, equipped with hollow servo spindle motor and hydraulic cooling system, which can realize drilling of 60-100mm depth.
Features
1. X, Y, Z axes are linear guide way. 3 axes standard rapid feed speed is 48m/min (optional up to 60m/min).
2. High-rigidity machine body structure design. In addition to the drilling and attack characteristics, low-intensity milling of aluminum parts can also be performed.
3. Couplings, bearings, spindles, balls, lead screws, linear guides, tool magazines, unclamping cylinders and other key
components are made of high-grade precision parts from Germany, Japan and Taiwan.
4. The machine configuration is modular, and can meet the different processing needs of customers. Our personalized choice: 10000~20000 rpm spindle, 16 or 21 tool magazines.
5. This processing center is mainly designed for the processing of porous precision small parts. High-speed operation, rapid tool change, and fast precision are the advantages of this machine.
6. Our company accumulates and continuously optimizescustomer application data, and can provide application technical support for customers with high-efficiency processing performance.
Specification
| Model | VTC-500C | |
| Table size | mm | 650*400 |
| X axis travel | mm | 500 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 300 |
| Distance between spindle and table | mm | 150~450 |
| Distance between spindle and column | mm | 464 |
| Spindle rotation speed | rpm | 20000 |
| Spindle taper | BT30/ Φ100 short nose spindle | |
| Spindle motor | kw | 3.7 |
| T slot size | mm | 3-14*125 |
| Three axis | Linear guide way | |
| ATC type | 16 tool ATC | |
| Max length/ weight of tool | mm/kg | 200/3 |
| X aixs rapid feed | m/min | 48 |
| Y aixs rapid feed | m/min | 48 |
| Z aixs rapid feed | m/min | 48 |
| Cutting feed | m/min | 12 |
| Positioning accuracy | mm/m | 0.005 |
| Min. set moving unit | mm | 0.001 |
| Dimension (L*W*H) | mm | 1680*1600*1930 |
| Weight | kg | 2800 |
| Max. load of table | kg | 250 |
