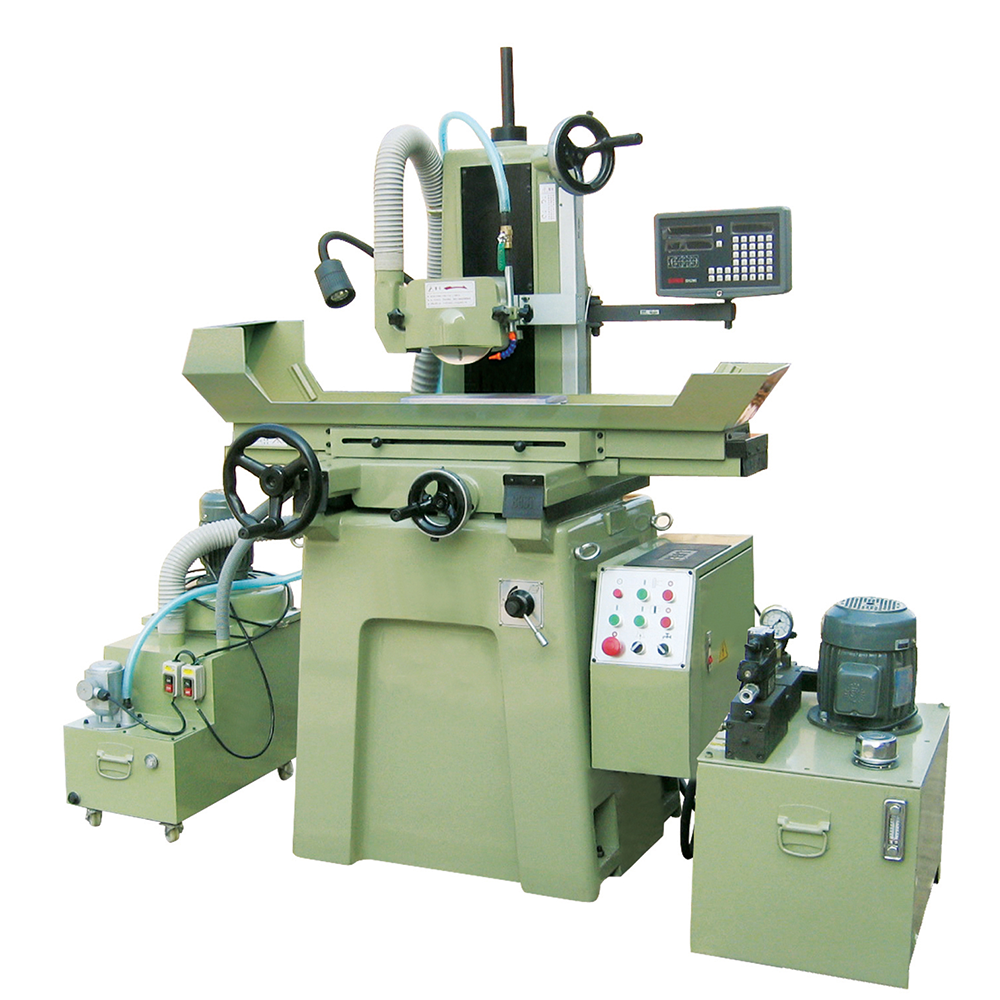

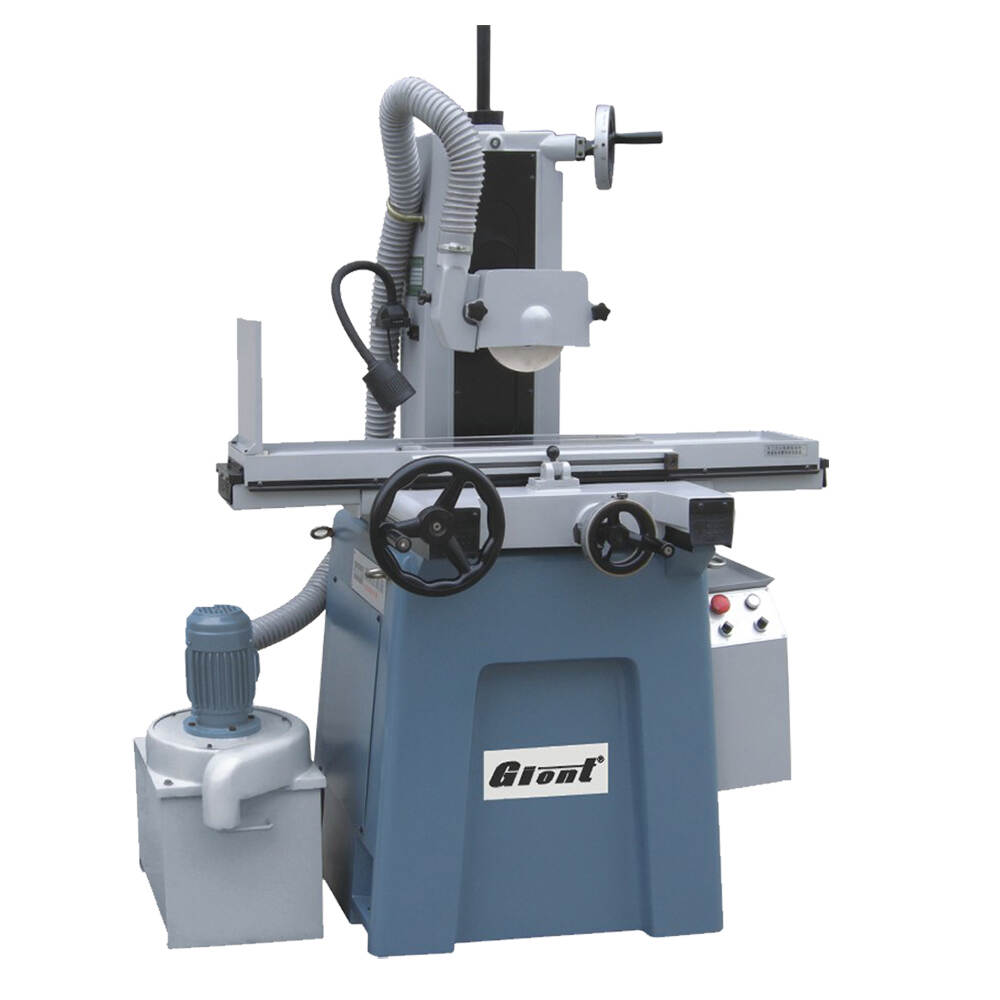

High Precision and High Quality Surface Grinding Machine 200S/H
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
100 unit per month
Quick Details
- Table size350*160
- X axis travel380
- Y axis travel200
Shipping fee
Shipping fee
High Precision and High Quality Surface Grinding Machine 200S/H
Suitable for high precision manufacturing industry
1. Precision and cost performance reach best configuration.
2. Specializing in the development and manufacture of surface grinding machine, variety of products, complete specification.
3. Suitable for different customer personality choice, high cost performance.
4. Stable and reliable quality, popular for mold manufacture industry market.
Specification
Standard accessories:
1. Magnet chuck
2. Dust clean / Coolant system
3. Grinding wheel
4. Oil pump
5. Working light
6. Wheel balance arbor
7. Wheel flange and extractor
8. Wheel dressing diamond tip and holder
9. Tool and toolbox
10. Operation manual
Optional accessories:
1. Two axis DRO
2. Coolant system + Dust suction
3. Balancing bracket
4. Inverter
5. Demagnizer
6. Vice
7. Punch dressor
8. Universal dressor
1. Precision and cost performance reach best configuration.
2. Specializing in the development and manufacture of surface grinding machine, variety of products, complete specification.
3. Suitable for different customer personality choice, high cost performance.
4. Stable and reliable quality, popular for mold manufacture industry market.
Specification
| Model | 200S/H | ||
| Table size | mm | 350*160 | |
| X axis travel | mm | 380 | |
| Y axis travel | mm | 200 | |
| Table side way | Ball-slide way | ||
| Max distance from spindle center to working table | mm | 445 | |
| Crossward feed of hand wheel | 1 Rev | 4 | |
| 1 Div | 0.02 | ||
| Vertical feed of hand wheel | 1 Rev | 1 | |
| 1 Div | 0.01 | ||
| Rotation speed | rpm | 50HZ:2880 60HZ:3360 | |
| Grinding wheel size | Φ200×(6-20)×F31.75 | ||
| Spindle motor | HP | 1.5*2 | |
| Coolant pump motor | 0.12*2 | ||
| Dust-clean motor | 0.5*2 | ||
| Dimension (L*W*H) | mm | 1610*1120*1645 | |
| Weight | kg | 780 | |
Standard accessories:
1. Magnet chuck
2. Dust clean / Coolant system
3. Grinding wheel
4. Oil pump
5. Working light
6. Wheel balance arbor
7. Wheel flange and extractor
8. Wheel dressing diamond tip and holder
9. Tool and toolbox
10. Operation manual
Optional accessories:
1. Two axis DRO
2. Coolant system + Dust suction
3. Balancing bracket
4. Inverter
5. Demagnizer
6. Vice
7. Punch dressor
8. Universal dressor
