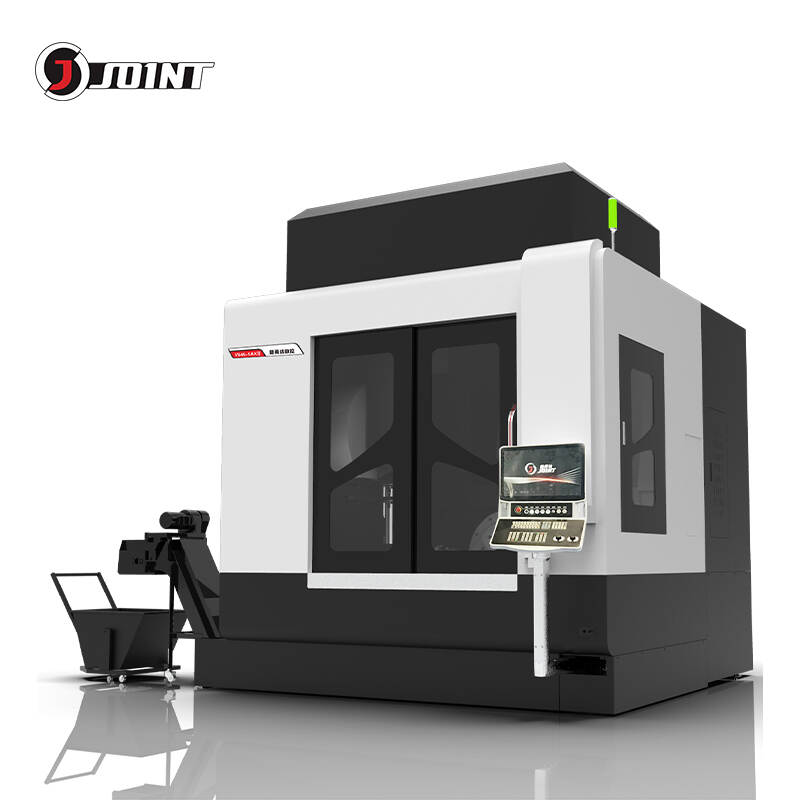

High Rigidity 5 Axis VMC CNC Machine Center for Metal with 5 Axis Rotary Table
High Rigidity 5 Axis VMC CNC Machine Center for Metal with 5 Axis Rotary Table
The 5 axis VMC adopts 5 axis rotary table structure driven by a dual-torque motor. In addition to the X / Y / Z axis, two additional axes have been added, featuring high rigidity and high accuracy. It can realize the processing of five faces in one clamping. Can be widely used in the processing of complex work-pieces such as aerospace, aerospace, automotive, mold, precision medical equipment, shipbuilding, light textile and other parts molds, impellers, blades and so on.
Features
1. Machine body: It adopts machine structure with a cantilevertype body and a cradle-type 5 axis rotary table. The X/Y/Z axis are for the vertical, horizontal, and vertical movements of the column. The spindle is up and down movement. The B/C axis are vertical rotations of the 5 axis rotary table, and the worktable is 360°rotation.
2. Metal plate: Integrated fully enclosed sheet metal with full protection for processing.
3. Rotary table: Taiwan Tokugawa dual DD direct drive motor 5 axis rotary table ¢ 650, high rotation speed. And equipped with German HEIDENHAIN high-precision encoder and circulargrating for positioning, repeated positioning accuracy of 4sec (seconds) = 1/90 degrees.
4. Controller:Germany Siemens 840DSL five-axis system, 24-inch large-screen system display, display, touch screen and front
operating panel installed in the milling finished aluminum control box, the overall structure is stable, not easy to deformation. Mechanical button, capacitive touch screen, support both hands at the same time, 10 touch control, more human operation.
5. Casting: Utilize finite element analysis to design high rigid base and column, support unite machining of double BC axis; B axis adopts double side support, ensure machining precision of worktable under heavy load. XY axis adopts high rigid, big span cross ram design, ensure the component of Y axis moving forward caused minimum rigid fluctuation during movement process.
Application characteristics
1. Rotary table rotary disk surface up to 650mm, bearing up to 300kg, can meet larger mold processing (the market general model is 500 rotary table).
2. Equipped with a Tokugawa double DD cradle-type 5 axis rotary table , which the repeatable positioning accuracy is within 2sec. And the accuracy of this rotary table is comparable to the worm type.
3. .The speed of the inclined axis of the transmission has been increased by 6 times, the speed of the rotary axis has been increased by 2 times, and the disk surface speed has been increased by 4 times, ensuring high-quality and high-precision processing.
Specification
| Model | V645-5AXIII | ||
| X axis travel | mm | 700 | |
| Y axis travel | mm | 450 | |
| Z axis travel | mm | 400 | |
| B axis travel | degree | +110~-110 | |
| C axis travel | degree | 0~360 | |
| Distance between spindle and table | mm | 220-600 | |
| Distance between spindle and column | mm | 224 | |
| Rotary table diameter | mm | Φ650 | |
| Net weight | kg | 300 | |
| Max load of table | mm*No.-size-pitch | 5-18*100 | |
| Tool handle | BT40 | ||
| Diameter of install | mm | Φ150 | |
| Pull stud | BT40 45° | ||
| Rotation speed | r/min | 50-12000 | |
| Torque of spindle motor | NM | 52 | |
| Spindle motor power | kw | 7 | |
| XYZ axis torque | Nm | 20 | |
| XYZ axis power | kw | 3.14 | |
| Cutting feed | m/min | 12 | |
| XYZ axis | m/min | 30 | |
| B axis | rpm/min | 50 | |
| C axis | rpm/min | 100 | |
Standard accessories:
1. Siemens controller system with servo motor and drive
2. Five axis DD rotary table
3. Fully enclosed cover
4. Chain type conveyor
5. Pneumatic system
6. Anto lubrication system
7. Work piece coolant system
8. Water-cooled coolant system
9. Heat exchange
10. Air gun
11. Water gun
12. Chip system
13. Oil mist collector
14. Hand wheel
15. RS232 Interface
16. Alarming light
17. Working light
18. Guide way cover
19. Technical documents
20. Operation manual
