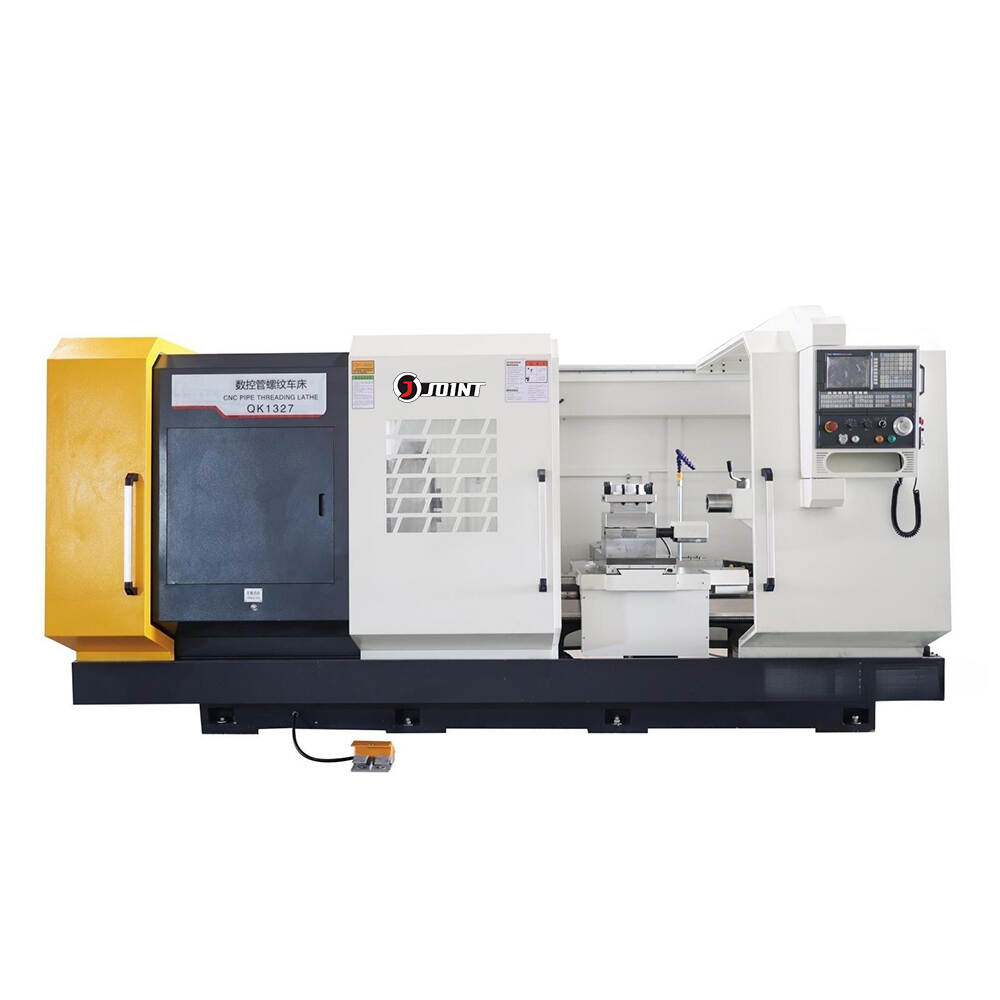

QK1327 High Precision CNC Pipe Thread Lathe Machine for Metal
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
L/C,T/T,D/P,D/A,Other,Western Union
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
- Max dia. swing over bed800
- Max dia. swing over cross slid480
- Max length of workpiece1500
- Width of bed600
Shipping fee
Shipping fee
QK1327 High Precision CNC Pipe Thread Lathe Machine for Metal
Pipe Thread Lathe machine widely used in petroleum, industry of drill piple, joints, casting and other parts processing.
It also can be used in chemical industry, coal, geological, etc all kinds of pipe thread processing.
It also can be used in chemical industry, coal, geological, etc all kinds of pipe thread processing.
|
Item
|
Unit
|
QK1327
|
|
Max dia. swing over bed
|
mm
|
800
|
|
Max dia. swing over cross slide
|
mm
|
480
|
|
Max length of workpiece
|
mm
|
1500
|
|
Width of bed
|
mm
|
600
|
|
Spindle bore
|
mm
|
280
|
|
Power of spindle motor
|
Kw
|
15
|
|
Mode of spindle speed
|
|
Two gears Smooth adjustment
|
|
Range of spindle speed
|
r/min
|
(L): 20-100 (H): 100-300
|
|
X/Z axis travel
|
mm
|
X:450 / Z:1250
|
|
X/Z axis rapid traverse
|
mm/min
|
4000
|
|
X axis motor speed
|
r/min
|
1500
|
|
X axis motor torque
|
N.m
|
15/18
|
|
X axis motor power
|
Kw
|
2.8
|
|
Z axis motor speed
|
r/min
|
1500
|
|
Z axis motor torque
|
N.m
|
18/22
|
|
Z axis motor power
|
Kw
|
3.8
|
|
Tailstock quill diameter
|
mm
|
100
|
|
Tailstock quill travel
|
mm
|
250
|
|
Tailstock quill taper
|
|
Morse NO.6
|
|
Turret model
|
|
SLD170A04N
|
|
Tool post type
|
|
Vertical 4- station
|
|
Turret dimension
|
mm
|
300x300
|
|
Turret indexing time
|
s
|
5.6
|
|
Chuck
|
|
K72-630 four jaw chuck
|
|
Positioning accuracy
|
mm
|
0.02
|
|
Repositioning accuracy
|
mm
|
0.01
|
|
Machine size
|
mm
|
4000x2100x2100
|
|
Machine weight
|
Kg
|
7000
|
Standard Accessories:
1) CNC system: GSK980TC3.
2) Front and rear three-jaw manual chuck.
3) Vertical four-station electric turret.
4) With tailstock.
5) With two gears.
6) Automatic lubrication system.
7) Turning cooling system.
8) The rear bracket.
