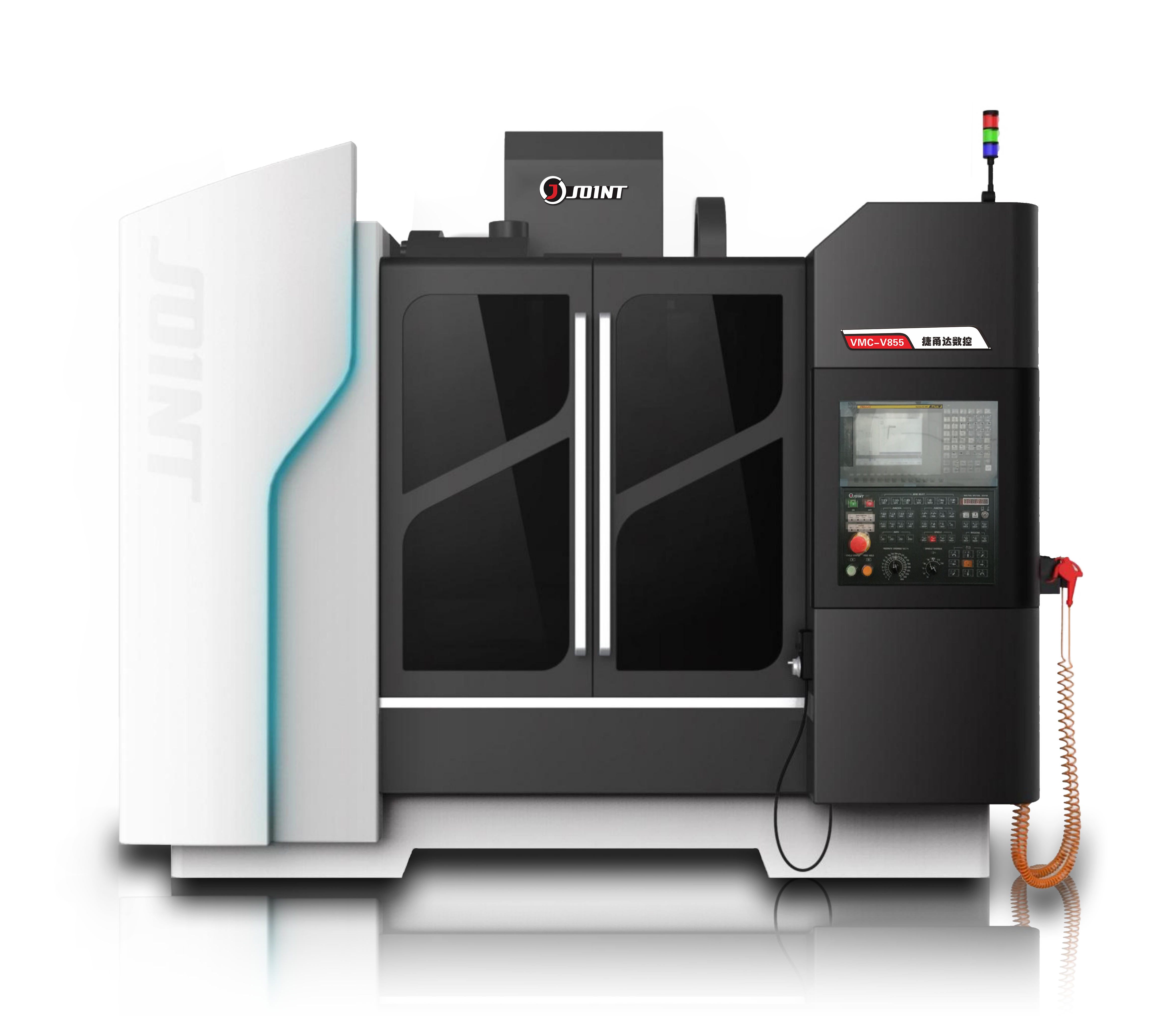

V855 High Speed High Precision CNC Milling Metal Processing Mould Vertical Machine Center
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
- Table Size1000*550
- X axis travel800
- Y axis travel550
- Z axis travel550
Shipping fee
Shipping fee
Product characteristics
1. V-series machines are designed for high efficiency parts processing. Three axis adopt ball linear guide way or roller iinear guide way ,rapid feed:48m/min.
2. The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response.
3. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.
4. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.
2. The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response.
3. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.
4. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.
5. Optional: 12000rpm /15000rpm direct connection spindle,coolant through spindle, ring spray spindle.
Application industry
1:Marking machine front plate;
2:Medical mechanical parts;
3:Auto parts;
4:Die processing.
Rapid feed, high speed spindle, first choice for parts processing
V series CNC machine center has the characteristics of fast feed speed and high rotation speed, so it is suitable for batch parts with many tools,complicated processing and multiple processes. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts,etc., are widely used in electronics, machinery and automotive, automation, medical, national defense and other fields.
Product main technical specifications:
| Specifications | Units | Model |
| VMC-V855 | ||
| Table size | mm | 1000*550 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| The distance between spindle nose to table | mm | 130-680 |
| The distance between spindle center to column | mm | 590 |
| Spindle rotation speed | rpm | Belt 10000/Direct connect 12000* |
| Spindle taper | BT40-150 long nose spindle | |
| Spindle power | kw | 7.5 |
| T-slot size of table ( No.- size*gap ) | 5-18*100 | |
| X axis rapid feed(X) | m/min | 48 |
| Y axis rapid feed(Y) | m/min | 48 |
| Z axis rapid feed(Z) | m/min | 48 |
| Cutting feed | m/min | 15 |
| Positioning accuracy | mm/m | 0.006 |
| Min setting moving unit | mm | 0.001 |
| Dimension(L *W*H) | mm | 2550*2850*2800 |
| Gross weight | kg | 5300 |
| Max load weight of table | kg | 500 |
