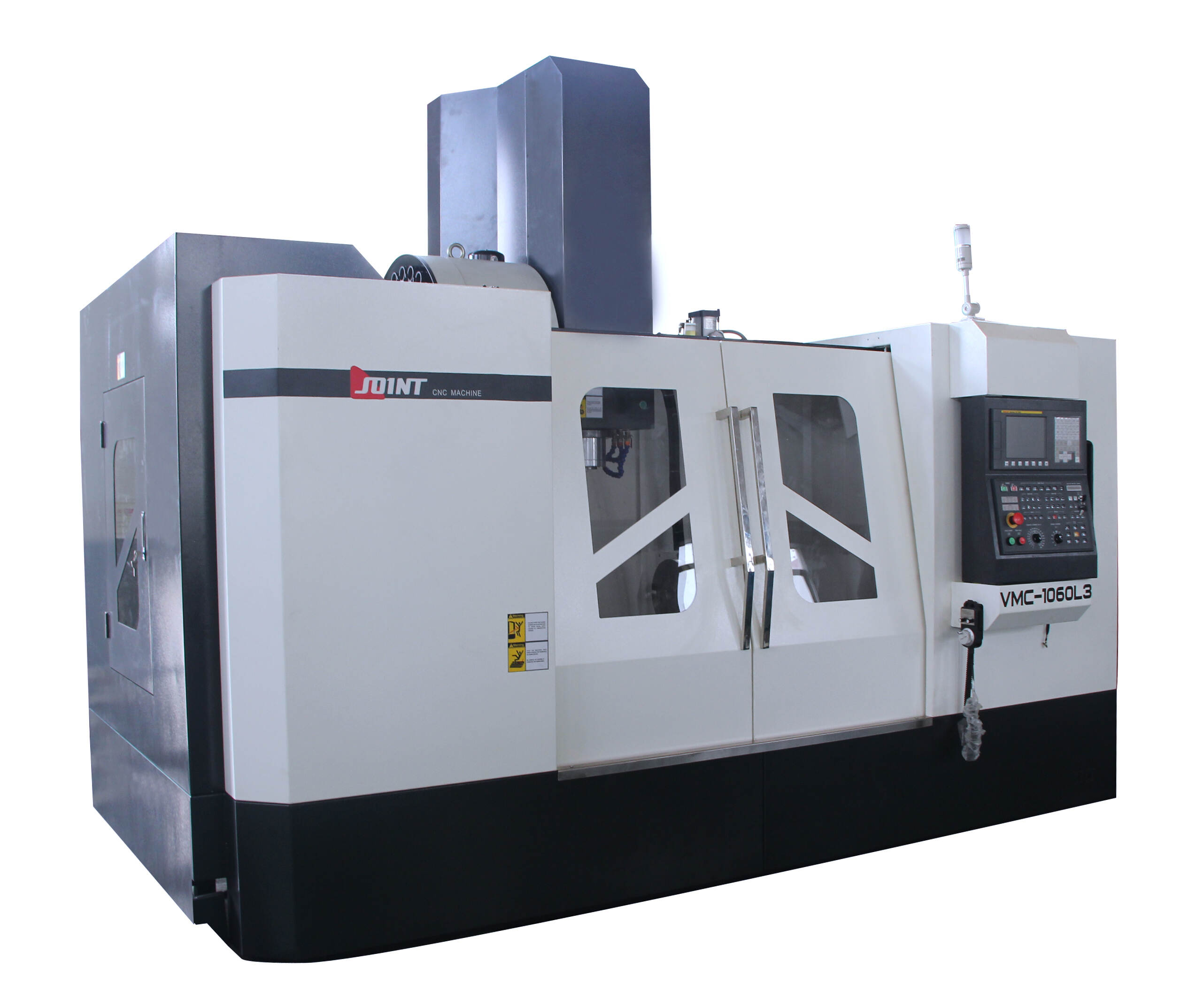

VMC-1060L High Speed Parts Processing Special Processing Center CNC Machine Center
- Table Size1300*600
- X axis travel1000
- Y axis travel600
- Z axis travel600
Product features
1. L series X/Y axis ball linear way, Z axis box way .
2. High rigidity machine structure can meet the heavy cutting requirement when fast running.
3. The coupling, spindle bearing, spindle, ball screw, linear way, tool magazine, unclamping cylinder and other key parts are imported from top-level brands in Germany, Japan and Taiwan to ensure high quality and high precision of products.
4. Complete model from VMC650L - 1890L，suitable for small to medium metal parts processing .
5. Modular configuration can provide customized options to meet different processing need, with Coolant through spindle, ring spray type spindle, 8000rpm belt type spindle, 10000-1 5000rpm direct connection spindle .
6. This VMC is mainly designed for parts processing, can speed up the feed speed and meet the high rigidity cutting requirements.
7.The 12701 worktable is a double-layer rib structure, which effectively improves the deformation resistance of the worktable .
Application characteristics
1: 8501 model can be equipped with high- precision high- speed motorized spindle (20000 rpm, HSKA63). German bearings and motors, and German manufacturing standards, which can realize high rigidity and high gloss processing.
2: Cam type tool magazine can be configured to realize rapid tool change function.
3: The motorized spindle adopts FANUC servo drive, which can realize the drilling and tapping performance.
4. The temperature diffrence oil cooler is selected to automatically adjust the oil temperature according to the equipment temperature, prolong the service life of the spindle and reduce the thermal deformation of the spindle.
Quality, precision and durability are more outstanding
Product main technical specifications:
| Specifications | Units | Model |
| VMC-1060L | ||
| Table size | mm | 1300*600 |
| X axis travel | mm | 1000 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| The distance between spindle nose to table | mm | 70-670 |
| The distance between spindle center to column | mm | 655 |
| Spindle rotation speed | rpm | 8000 |
| Spindle taper | BT40-150 | |
| Spindle power | kw | 11 |
| T-slot size of table ( No.- size*gap ) | 5-18*100 | |
| X axis rapid feed(X) | m/min | 24(Max 30) |
| Y axis rapid feed(Y) | m/min | 24(Max 30) |
| Z axis rapid feed(Z) | m/min | 18 |
| Cutting feed | m/min | 10 |
| Positioning accuracy | mm/m | 0.008 |
| Min setting moving unit | mm | 0.001 |
| Dimension(L *W*H) | mm | 3300*2670*2950 |
| Gross weight | kg | 8000 |
| Max load weight of table | kg | 800 |
