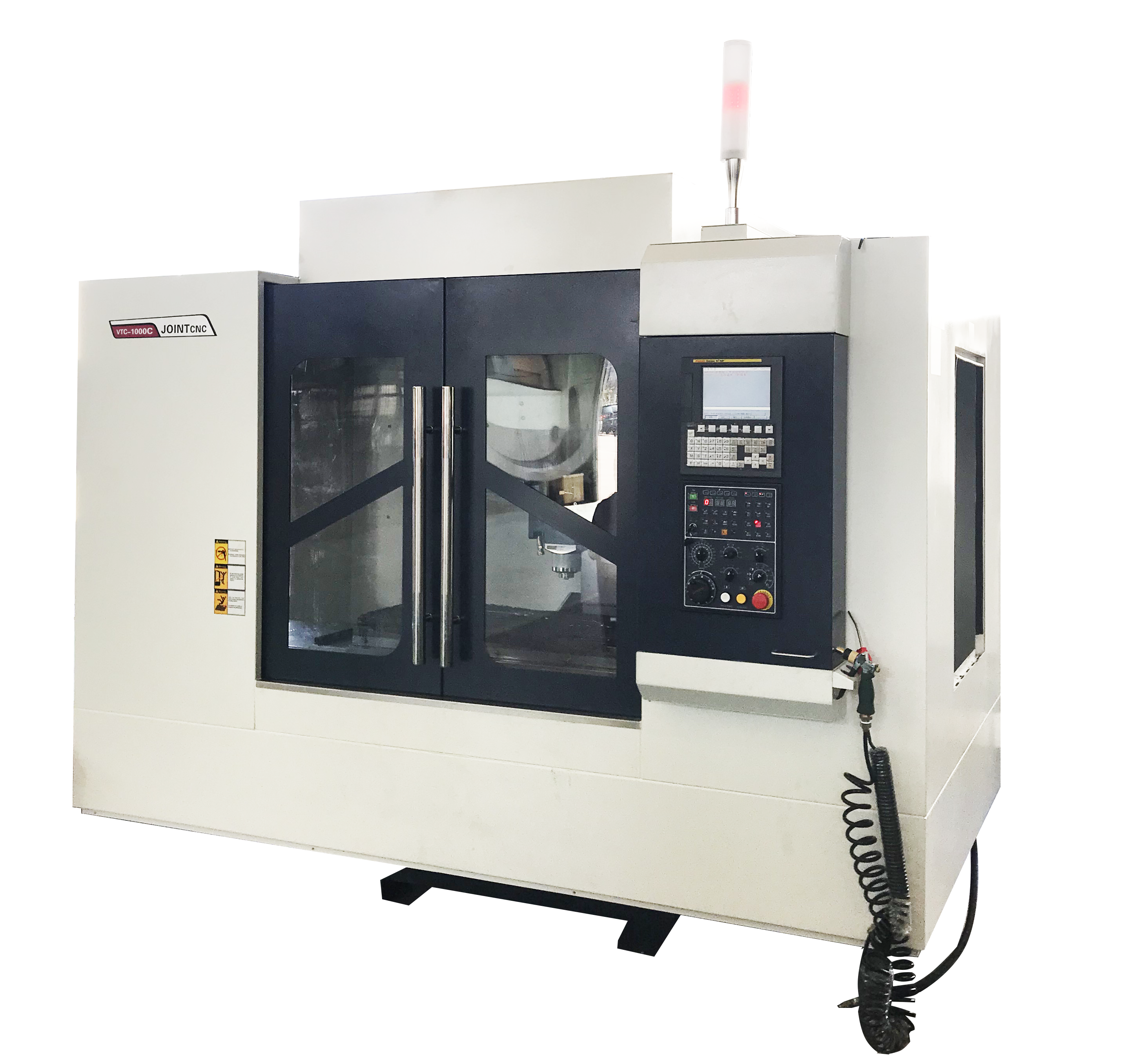

VTC-1000C High Precision Drilling and Tapping CNC Drilling Machine for Small Parts Processing
- Table Size1100*500
- X axis travel1000
- Y axis travel500
- Z axis travel330
Product features
1. X, Y, Z axes are linear guide way.3 axes standard rapid feed speed is 48m/min (optional up to 60m/min).
2. High-rigidity machine body structure design. In addition to the drilling and attack characteristics, low-intensity milling of aluminum parts can also be performed.
3. Couplings, bearings, spindles, balls, lead screws, linear guides, tool magazines, unclamping cylinders and other key components are made of high-grade precision parts from Germany, Japan and T aiwan.
4. The machine configuration is modular, and can meet the different processing needs of customers. Our personalized choice: 1 0000~ 20000 rpm spindle, 16 or 21 tool magazines.
5. This processing center is mainly designed for the processing of porous precision small parts. High- speed operation, rapid tool change, and fast precision are the advantages of this machine.
6. Our company accumulates and continuously optimizes customer application data, and can provide a pplication technical support for customers with high- efficiency processing performance.
Application industry
1. Mobile phone case processing
2. Mechanical hardware processing
3. Digital camera parts
Quality reliability and processing performance are more prominent
Spindle adopts the central water discharge spindle, equipped with hollow servo spindle motor and hydraulic cooling system, which can realize drilling of 60- 100mm depth.
Product main technical specifications:
| Specifications | Units | Model |
| VTC-700C | ||
| Table size | mm | 110*500 |
| X axis travel | mm | 1000 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 330 |
| The distance between spindle nose to table | mm | 150-480 |
| The distance between spindle center to column | mm | 546 |
| Spindle rotation speed | rpm | 20000/24000 |
| Spindle taper | BBT30-100 short nose spindle | |
| Spindle power | kw | 3.7 |
| T-slot size of table ( No.- size*gap ) | 5-18*100 | |
| X axis rapid feed(X) | m/min | 48 |
| Y axis rapid feed(Y) | m/min | 48 |
| Z axis rapid feed(Z) | m/min | 48 |
| Cutting feed | m/min | 12 |
| Positioning accuracy | mm/m | 0.005 |
| Min setting moving unit | mm | 0.001 |
| Dimension(L *W*H) | mm | 2530*1930*2500 |
| Gross weight | kg | 3800 |
| Max load weight of table | kg | 350 |
